Low Temperature Integrate Ethernet signal and Fiber Optic Rotary Joint Slip Ring
  • Low Temperature Integrate Ethernet signal and Fiber Optic Rotary Joint Slip Ring
  • Low Temperature Integrate Ethernet signal and Fiber Optic Rotary Joint Slip Ring
  • Low Temperature Integrate Ethernet signal and Fiber Optic Rotary Joint Slip Ring

Low Temperature Integrate Ethernet signal and Fiber Optic Rotary Joint Slip Ring

원래 장소 중국
브랜드 이름 CENO
인증 CE,RoHS,ISO9001,UL
모델 번호 ECN000-05P1-04S-01EG-01F
제품 세부 정보
광섬유:
5 * 5A; 4 * 신호; 1 * 이더넷; 1 * 광섬유
조정 전압:
0 ~ 220 VAC/VDC
절연 내력:
≥1000VAC@50Hz ; ≥300VAC@50Hz
격리 저항:
≥500MΩ@500VDC; ≥500MΩ@500VDC; ≥100MΩ@300VDC ≥100MΩ@300VDC
콘택 저항:
≤ 10mΩ
접촉물질:
귀금속
하우징 소재:
알루미늄 합금
작업 온도:
-40' C~+50' C
일하는 습도:
60 %RH
IP 보호 그레이드:
IP51
동작속도:
0~300rpm
외부 지름:
Ø56mm
리드선 크기 및 길이:
요구로서
파장:
1310/1550
삽입물 손실:
<2dB
수익 손실:
<30dB
삽입 손실 편차:
< ± 0.5dB
커넥터:
FC
설치 방식:
플랜지 설치
지불 및 배송 조건
최소 주문 수량
1pcs
가격
협상 가능
포장 세부 사항
요구로서의 통 /
배달 시간
1주
지불 조건
T/T,PayPal, 웨스턴 유니온
공급 능력
한달에 1000PCS
제품 설명

Low Temperature Integrate Ethernet signal and Fiber Optic Rotary Joint Slip Ring

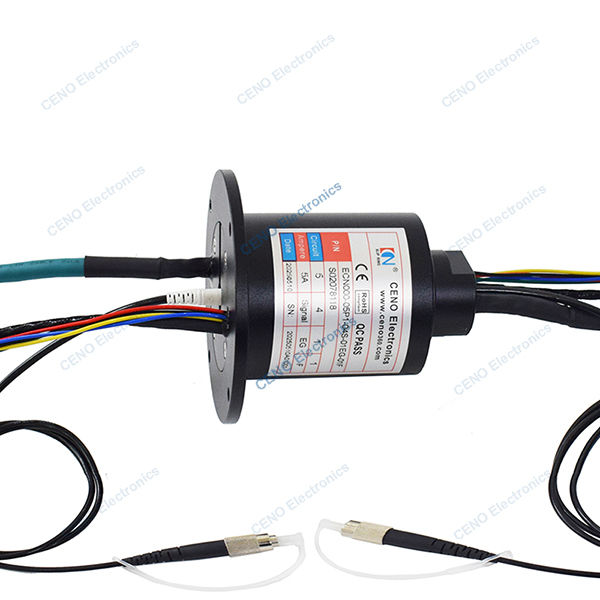

ECN000-05P1-04S-01EG-01F is CENO Integrate electric power signal and fiber optic rotary joint slip ring, that is equipped in the machine working in low temperature -40°C~+50°C. Slip ring is an electro-mechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. CENO integrate fiber optic rotary joint slip rings are developed for rugged environment and demanding requirements, and performing in aerospace and defense application.




Features

  • Integrate design combine power signal and fiber optic rotary joint
  • Low temperature design
  • Can be integrated various data
  • Install easy & Free maintenance


Applications

  • Robotics
  • Material conveying system
  • Radar system
  • Remote control system
  • Medical equipment


Optional

  • Circuit, Voltage, Current
  • Wave length & fiber type
  • Contact / Housing Materials
  • Structure and installation
  • Working speed & temperature




Specification

ECN000-05P1-04S-01EG-01F

Specification
Current & Circuits5 circuits * 5A; 4circuits * signal; 1 * Ethernet Signal; 1 * Fiber optic
Rating Voltage0 ~ 220 VAC/VDC
Dielectric strength≥1000VAC@50Hz; ≥300VAC@50Hz
Isolation resistance≥500MΩ@500VDC; ≥100MΩ@300VDC
Contact resistance wave≤ 10mΩ
Working temperature-40°C~+50°C
Working humidity60 %RH
IP protection gradeIP51
Operating speed0~300rpm
Outer diameterØ56mm
Contact materialPrecious Metal
Housing materialAluminum Alloy
Lead wire lengthRotor: 1000mm; Stator: 1000mm
Installation wayFlange installation
Fiber Optic
Wave length1310/1550
Insert loss<2dB
Return loss<30dB
Insertion loss deviation<±0.5dB
ConnectorFC
Cable lengthStator: 700±10mm; Rotor: 1100±15mm




Outline drawing

Low Temperature Integrate Ethernet signal and Fiber Optic Rotary Joint Slip Ring 0






CENO Power/Signal + Fiber Opticrotary joint product series

Integrated slip ring is CENO non-standard series.POWER/SIGNAL + FIBER OPTIC ROTARY JOINT design according to special application, to integrates the current, signal circuits and optical fiber joint. Its current could up to several hundred amperes and its signal could cover all kind of signal type base on relevant application. Optical fiber joint include sigell-mode and multimode with diverious channel from signal channel to dozens of channel. This kind of integrated slipring gets well performance and various function, then it is widely used in option electric crane.
