| Place of Origin | China |
| 브랜드 이름 | CENO |
| 인증 | CE,RoHS,ISO9001,UL |
| Model Number | ECN050-14S-01EM-IP65-B |

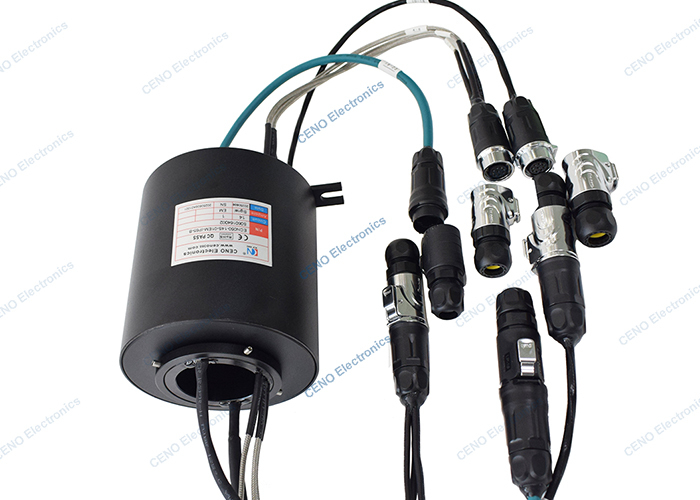

Low Temperature Ethernet and Encoder Signal Slip Ring with Electric Power
ECN050-14S-01EM-IP65-B is CENO integrate slip ring combine circuits electric power, Ethernet signal with one channel Encoder suit for the equipment working in low temperature environment. Encoder is a device that complies and converts electric signal or data into signals that can be communicated, transmitted and stored. That can be divided into incremental type and absolute value type according to the working principle. For more information please contact us.
Features
Applications
Optional
Specification
| ECN050-14S-01EM-IP65-B | Specification |
| Current & Circuits | 3 * K type thermocouple; 1 * Encoder signal; 1 * 100M Ethernet |
| Rating Voltage | 0 ~ 24 VAC/VDC |
| Dielectric strength | ≥300VAC@50Hz |
| Isolation resistance | ≥100MΩ@300VDC |
| Contact resistance wave | ≤ 30mΩ |
| Working temperature | -40°C~+60°C |
| Working humidity | 60 %RH |
| IP protection grade | IP65 |
| Operating speed | 0~300rpm |
| Inner diameter | Ø50mm |
| Outer diameter | Ø119mm |
| Contact material | Precious Metal |
| Housing material | Aluminium Alloy |
| Lead wire length | As customized |
Outline drawing
|
Application
|
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
