| 원래 장소 | 중국 |
| 브랜드 이름 | CENO |
| 인증 | CE,RoHS,ISO9001,UL |
| 모델 번호 | ECN000-04P2-05P1-23S-01EG |

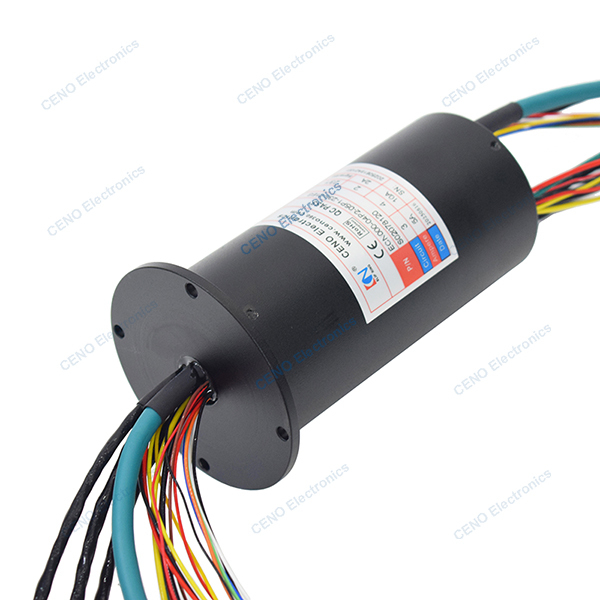

Low Temperature Ethernet Signal Slip Ring with Electric Power for industry
ECN000-04P2-05P1-23S-01EG is CENO customized slip ring with circuits electric power and Ethernet signal which equipped on the machine working in low temperature environment. Low temperature slip ring is one type of function slip rings at CENO. In order to achieve the corresponding level of low temperature resistance, these slip rings are much stricter than ordinary slip rings in the material selection of key components such as bearings, brush filaments or shells.
Features
Applications
Optional
Specification
| ECN000-04P2-05P1-23S-01EG | Specification |
| Current & Circuits | 3 * 5A; 4 * 10A; 2 * 2A; 3 * RS422; 8 * 2A; 1 * 1000M Ethernet Signal |
| Rating Voltage | 0 ~ 220 VAC/VDC |
| Dielectric strength | ≥500VAC@50Hz; ≥300VAC@50Hz |
| Isolation resistance | ≥500MΩ@500VDC; ≥100MΩ@300VDC |
| Contact resistance wave | ≤ 30mΩ |
| Working temperature | -55°C~+70°C; -20°C~+55°C |
| Working humidity | 60 %RH |
| IP protection grade | IP51 |
| Operating speed | 0~300rpm |
| Outer diameter | Ø62mm |
| Contact material | Precious Metal |
| Housing material | Aluminium Alloy |
| Installation | Flange installation |
| Lead wire length | Rotor side: 1500mm; 1000mm; Rotor: 500mm |
Outline drawing
|
Application
|
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
