이더네트 미끄러짐 반지
>
|
|
| 원래 장소 | 중국 |
| 브랜드 이름 | CENO |
| 인증 | CE,RoHS,ISO9001,UL |
| 모델 번호 | ECN000-05P3-02P1-02EG |

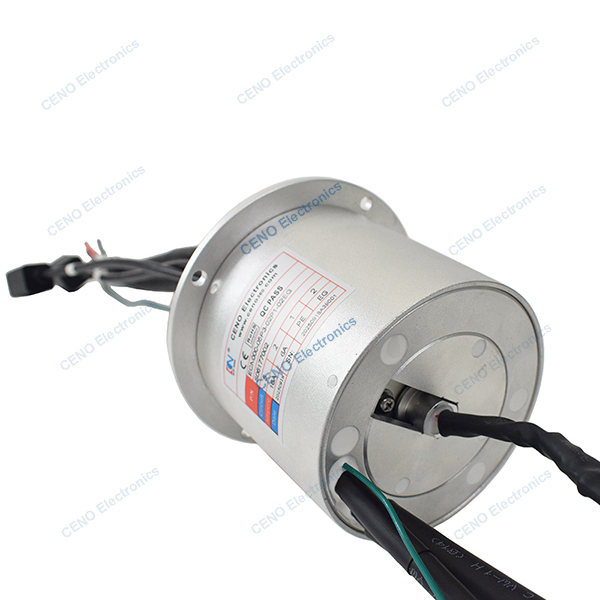

Low Temperature Waterproof Slip Ring with IP65 & Ethernet signal for Industry
ECN000-05P3-02P1-02EG is CENO high protection slip ring with electric power and Ethernet signals. Ethernet technology is currently the most commonly used network technology, which provides a communication bandwidth of 1 GBPS for the Internet and communication systems. It has the simplicity of Ethernet and the economy of a similar rate communication system. CENO provide kinds of combined Ethernet signal slip rings. More special applications please contact us.
Features
Applications
Optional
Specification
| ECN000-05P3-02P1-02EG Specification | |
| Current & Circuits | 5 * 16A; 2 * 6A; 1*PE; 2 * 1000M Ethernet signal |
| Rating Voltage | 0 ~ 415 VAC/VDC |
| Dielectric strength | ≥1500VAC@50Hz; ≥300VAC@50Hz |
| Isolation resistance | ≥500MΩ@500VDC; ≥200MΩ@300VDC |
| Contact resistance wave | ≤ 30mΩ |
| Working temperature | -20°C~+60°C |
| Working humidity | 60 %RH |
| IP protection grade | IP65 |
| Operating speed | 0~20rpm |
| Outer diameter | Ø99mm |
| Contact material | Precious Metal / Gold to gold |
| Housing material | Aluminium Alloy |
| Rotary Torque | ≤ 3N*m |
| Lead wire length | As customized |
Outline drawing
|
Application
|
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
