고주파 회전하는 합동
>
|
|
| 원래 장소 | 중국 |
| 브랜드 이름 | CENO |
| 인증 | ISO9001,CE,RoHS,UL |
| 모델 번호 | ECN000-08P-13S-03R-IP65 |
3 RF Rotary Joint Low Temperature Integrate Power & Radio Frequency Slip Ring

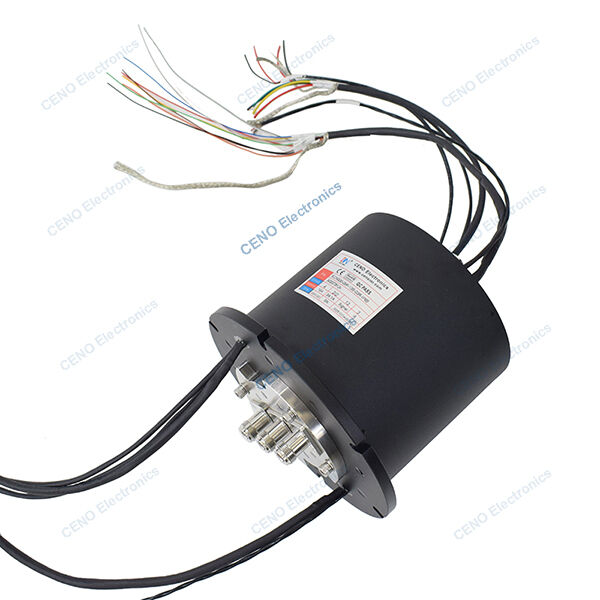

ECN000-02P1-03S-02R-IP65 is CENO Integrate RF Slip Ring combined circuits electric power signal and 2 channels radio frequency rotary joint suit for low temperature environment. CENO integrate slip rings are multi-functional rotary connection solution that highly integrate various transmission modules such as power slip ring, forjs, rf rotary joint and pneumatic/hydraulic channels, specially designed for the simultaneous rotary transmission in complex system. For more information please contact us.
Specification
| ECN000-08P-13S-03R-IP65 Specification | |||
| Current & Circuits | 4 * 10A;2*3A; 2*1A; 11*10 Signal; 1*485Signal | ||
| Rating Voltage | 0 ~ 220 VAC/VDC | ||
| Dielectric strength | ≥500VAC@50Hz; ≥300VAC@50Hz | ||
| Isolation resistance | ≥500MΩ@500VDC; ≥100MΩ@300VDC | ||
| Contact resistance wave | ≤30mΩ | ||
| Working temperature | -40°C~+60°C; -45°C~+70°C | ||
| Working humidity | 60 %RH | ||
| IP protection grade | IP65 | ||
| Operating speed | 0~30rpm | ||
| Outer diameter | Ø150mm | ||
| Materials | Precious Metal / Aluminium Alloy | ||
| Installation | Flange installation | ||
| Radio Frequency Rotary Joint | |||
| Channels | Channel 1 | Channel 2 | Channel 3 |
| Connector type | N-F(50Ω) | N-F(50Ω) | N-F(50Ω) |
| Frequency range | DC to 2GHz | DC to 800Hz | DC to 800Hz |
| Average power(max) | 20W | 20W | 20W |
| WSR(max) | 1.3 | 1.3 | 1.3 |
| WSRC(max) | 0.1 | 0.1 | 0.1 |
| Insert loss(max) | 0.4dB | 0.4dB | 0.4dB |
| Insertion change(max) | 0.15dB | 0.15dB | 0.15dB |
| Isolation | 70dB | 70dB | 70dB |
Features
Applications
Optional
Outline drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
