| 원래 장소 | 중국 |
| 브랜드 이름 | CENO |
| 인증 | CE,RoHS,UL,ISO9001 |
| 모델 번호 | ECN000-10P-04S-01EM-02R |

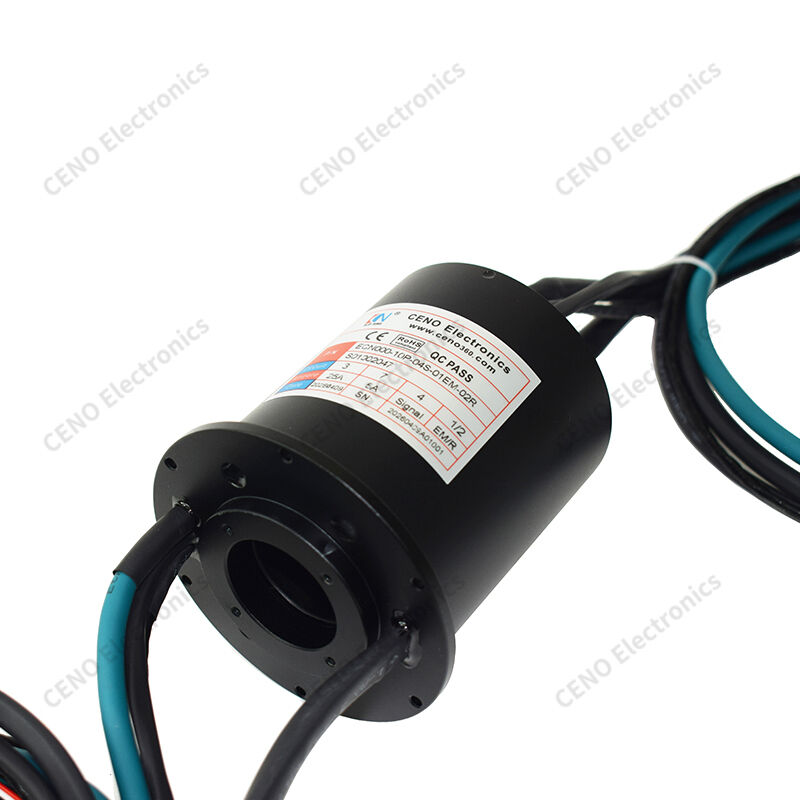

Hollow-shaft Slip Ring with 3×25A power circuits
ECN000-10P-04S-01EM-02R is CENO Hollow-shaft Slip Ring integrates 3×25A power circuits, 7×5A signal channels and Gigabit Ethernet paths to deliver simultaneous power, control and high-speed data transfer during 360° endless rotation. Its central through bore allows shafts or pipelines to pass through, with separated power & signal cables to suppress interference. Made of anodized aluminum and precious metal contacts, it is CE & RoHS certified for stable long-term industrial rotary operation.
Features
Applications
Optional
Specification
|
ECN000-10P-04S-01EM-02R |
Specification |
|
Protection rating |
IP51 |
|
Operating humidity |
Above 90% RH |
|
Operating temperature |
-40°C ~ +70°C |
|
Wire specifications |
AWG12#/AWG22# tinned Teflon wire; Four-core twisted-pair shielded cable (0.14mm²); CAT6 |
|
Operating voltage |
240VAC/VDC |
|
Circuits & Current |
3 circuits × 25A (240VAC); 7 circuits × 5A (24VDC) 1 set × RS422 signal; 1 set × 100 Mbps Ethernet |
|
Dielectric strength |
≥1000VAC@50Hz between circuits (power) ≥200V@50Hz between circuits (signal) |
|
Insulation resistance |
1000MΩ@500VDC (power); 200MΩ@200VDC (signal) |
|
Contact resistance variation |
≤10mΩ (at 50rpm operation) |
|
Operating speed |
0~50rpm |
|
Lead wire length |
Rotor: 1000mm; Stator: 2500mm |
|
Contact material |
Precious metal / gold-on-gold |
|
Housing material |
Aluminum alloy, sandblasted and black anodized |
Outline drawing
Our Service
1. Reply inquiry in 24 hours.
2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.
3. Answer your question detailed.
4. Solved the problem with you during using our products.
5. Samples will be offered to you for our future cooperation.
FAQ
1. What do we do?
We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.
2. How long have we been in the business?
CENO established slip rings business since 2009. We have thousands of customers accepted our products or services.
3. What is a slip ring?
A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.
4. How do I choose a slip ring?
Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.
5. Do you offer custom slip rings?
Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.
