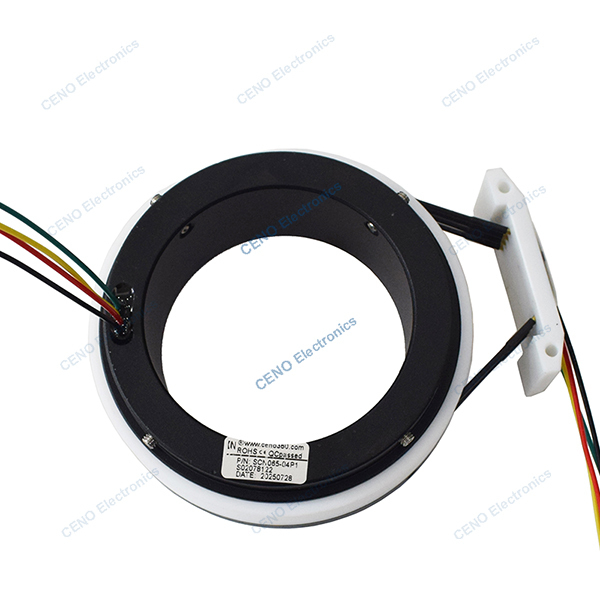

Separate Slip Ring with Two half style and Electric Power Rotary Joint
  • Separate Slip Ring with Two half style and Electric Power Rotary Joint
  • Separate Slip Ring with Two half style and Electric Power Rotary Joint

Separate Slip Ring with Two half style and Electric Power Rotary Joint

원래 장소 중국
브랜드 이름 CENO
인증 ISO9001
모델 번호 SCN065-04P1
제품 세부 정보
회로 번호:
4 회로 * 3A
전압:
0 ~ 380 VAC/VDC
유전력:
≥1000vac@50Hz
격리 저항:
≥500mΩ@500VDC
작업 온도:
-20' C~+80' C
작동하는 습도:
60 %RH
IP 보호 등급:
IP00
작동 속도:
0 ~ 300rpm
내 직경:
Ø65mm
외경:
Ø96mm
리드 와이어 길이 및 크기:
사용자 정의
지불 및 배송 조건
최소 주문 수량
1pcs
가격
협상 가능
포장 세부 사항
요구로서 /를 나무 상자에 채워 넣으세요
배달 시간
2 주
지불 조건
T/T, PayPal, Western Union
공급 능력
한 달에 1000pc
제품 설명

Separate Slip Ring with Two half style and Electric Power Rotary Joint

SCN065-04P1 is CENO separate slip ring with 4 circuits electric power and optional for different require. A separate slip ring is a slip ring device in which the rotor and stator can be physically separated. When the work is completed or maintenance is required, the two can be easily separated. Its rotor and stator are not permanently fixed together, but like a "plug" and "socket", they can be connected and disconnected at any time as needed. For more information about how CENO slip ring can fit your application please contact us.




Specification

SCN065-04P1

Specification
Current & Circuits 4 circuits * 3A
Rating Voltage 0 ~ 380 VAC/VDC
Dielectric strength ≥1000VAC@50Hz
Isolation resistance ≥500MΩ@500VDC
Contact resistance wave ≤ 30mΩ
Working temperature -20°C~+80°C
Working humidity 60 %RH
IP protection grade IP00
Operating speed 0~300rpm
Inner diameter Ø65mm
Outer diameter Ø96mm
Contact material Precious Metal
Housing material Aluminium Alloy
Lead wire size As customized
Lead wire length As customized







Features

  • High reliability, design flexibility
  • Avoids cable entanglement & supports multi media transmission
  • Through hole 3~980mm optional
  • Install easy & Free maintenance



Applications

  • Machine tools
  • Turntable testing machine
  • Packing equipment
  • Roller test benches
  • Radar masts



Optional

  • Circuit, Voltage, Current
  • Signals and data
  • Contact / Housing Materials
  • Inner / outer diameter
  • Working speed & temperature



Outline drawing

Separate Slip Ring with Two half style and Electric Power Rotary Joint 0













Why with CENO



CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

Separate Slip Ring with Two half style and Electric Power Rotary Joint 1



Certification

ISO9001,CE,RoHS,UL,Explosion-proof

Separate Slip Ring with Two half style and Electric Power Rotary Joint 2



CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.



Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.





Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
